| Ambient Machines | Refrigerated Machines | |||
| Motor/Selection # | Wire Color | Motor/Selection # | Wire Color | |
| 0 | Red | 0 | Black | |
| 1 | Red/White | 1 | Brown | |
| 2 | Green/Red | 2 | Red | |
| 3 | Green/White | 3 | Orange | |
| 4 | Blue | 4 | Yellow | |
| 5 | Blue/White | 5 | Green | |
| 6 | Brown | 6 | Blue | |
| 7 | Brown/White | 7 | Purple | |
| 8 | Grey | 8 | Grey | |
| 9 | Grey/White | 9 | White | |
| COMMON WIRE – RED/WHITE | COMMON WIRE – PINK | |||
Dual Helix Motor Wiring Configuration

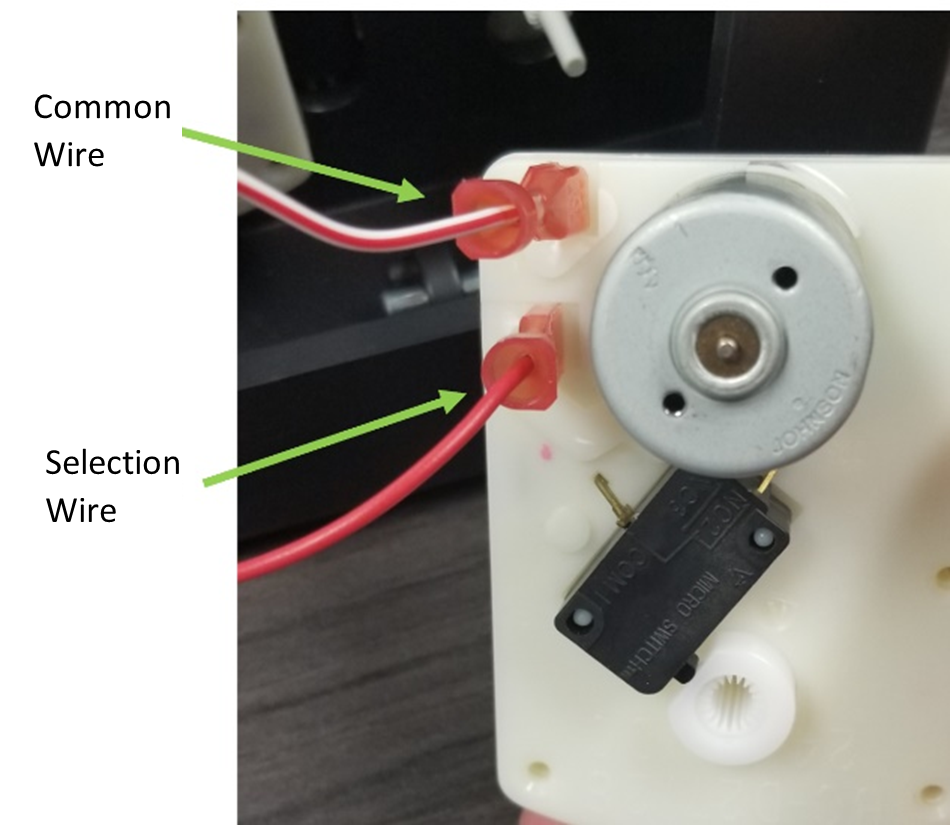

Looking at the rear of the motor and from left to right, there are three (3) paddle connectors to receive the spade connectors on the individual power wires
To properly configure a dual helix motor, the wires are attached as follows:
Left Connector Common Red/White
Middle Connector Common Red/Yellow
Right Connector Individual Motor Wire
